JUNE 30,2025

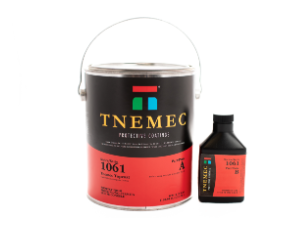

Tnemec Introducing Series 1061 Oculox: A Breakthrough in Water-Based Topcoat Technology!

2025-06-30 08:44

Tnemec is introducing Series 1061 Oculox, a silicon-grafted composite topcoat that redefines color and gloss retention in water-based coatings.


Designed to outperform even aliphatic polyurethanes and polysiloxanes, Oculox offers exceptional durability, easy application, and long-lasting brilliance - without the use of isocyanates.

Available in a semi-gloss finish, Series 1061 Oculox is the evolution in topcoat technology.

Series 1061Oculox

Generic Type

Silicon-Grafted Composite

Common Usage

A highly innovative, water-based coating that combines user-friendly application characteristics with the aesthetic performance of the industry's best topcoats. This unique formulation cures into a durable film with exceptional resistance to ultra-violet light degradation, resulting in long-term color and gloss retention that extends maintenance cycles. Excellent for use on structural steel, tank exteriors, decorative metals, and industrial and marine equipment. This isocyanate-free, low VOC, and low-odor formulation dry-falls when spray applied, offering fast, labor-saving application rates and protection to nearby structures from damaging overspray.

Special Qualifications

Series 1061 meets the requirements of LEED-Low-Emitting Materials, Collaborative for High-Performance Schools-Paints & Coatings, WELL Building Standard-VOC Restrictions, and Living Building Challenge–Healthy Interior Performance. Contact your Tnemec representative for more information.

This product is part of a coating system tested in accordance with ISO 12944-6 (2018). Contact your Tnemec representative for coating system test results.

Topcoats

Series 1061. Note: when applying Series 1061 over itself, the maximum recoat window is 6 months.

Number of Components

Two: one (Part A) and one (Part B).

Finish

Semi-gloss

Volume Solids

38.0 ± 2.0% (mixed)

HAPS

Unthinned: 0.00 lbs/gal solids
Thinned 5% (Water): 0.00 lbs/gal solids

Volatile Organic Compounds

Unthinned: 0.83 lbs/gal (99 grams/litre)
Thinned 5% (Water): 0.83 lbs/gal (99 grams/litre)

Recommended DFT

2.0 to 3.5 mils (50 to 90 microns) per coat.

Curing Time

Temperature To Touch To Handle To Recoat
75°F (24°C) 30 minutes 6 hours 16 hours
55°F (13°C) 45 minutes 12 hours 36 hours
40°F (4°C) 1 hour 16 hours 40 hours

Curing time varies with surface temperature, air movement, humidity and film thickness.

Primers

Series 22, 27, 66, L69, L69F, N69, N69F, V69, V69F, 90-75, 98-H?O, 108, 116, 133, 135, L140, L140F, N140, N140F, 161, 188, 288, 394, 1220, 1224. Note: The following max recoat windows apply: 27, L69F, V69, 90-75, 98-H2O, 133, L140F, 188, @7 days@; Series N69F, 108, N140F, 394, @14 days@; Series 22, 66 (exterior/wet recoat), L69, V69F, L140, 161, @21 days@; Series N69, 135, N140, 288, 1220, @30 days@; Series 66 (interior/dry recoat), 116, 1224, @6 months@.
